Himalaya Spares Price List

Primus Stoves Modern Primus stoves 3289 Omnifuel parts 3288 Multifuel parts 3278 Varifuel parts 3280 Gravity MF (2005), VF (2006) parts 3281 Gravity MF parts Primus AB & Primus Leisure LPG parts						Last updated 05/05/08
Historical Note The paraffin, (kerosene), division of Primus was sold by the Swedish Bahco Group to Optimus in 1962. Renamed 'Primus Trading AB.' the Company continued with a reduced range alongside Optimus until 1972 when the Division was closed down. Many parts for traditional brass Primus stoves are common with Optimus stoves and are currently listed in our Optimus parts list. A new section giving much more detail on many classic paraffin models from Primus is under construction and will be launched soon. Primus AB., the original company, had been manufacturing quality LPG stoves and lanterns since 1953 and in 1966 was sold by Bahco to AB Sievert who manufactured similar products. The new Company was named Primus-Sievert AB. The company produced a wide range of camping & leisure stoves, barbques and industrial equipment. In the late 1980's the Primus company was sold to a group of investment bankers becoming Primus AB. The company continued to produce a range of quality camping & leisure stoves, lanterns and industrial equipment. In 1998 the MFS, (Multi Fuel System), stove was lauched. This was the first stove to run on many liquid fuels as well as LPG. A liquid fuel only version, the LFS, and LPG only version, the LPS completed the line up. In 2000 stoves were grouped together as the 'Himalaya' range, the Multifuel, Varifuel and Easyfuel stoves. Then in the Autumn of 2001 the Omnifuel stove, was announced. This advanced model is still the only true Multifuel stove, running on virtually any liquid fuel as well as LPG.! A boost was given to the company in August 2002 when it was aquired by 'Fenix Outdoor', a specialist outdoor equipment supplier, the entire range was revised and improved. For 2006 the range has been further improved with the introduction of the Gravity stoves. The whole range is now under the Primus AB banner to emphasise its quality heritage.

Reference	Old Reference	Product description	£ Sterling

721290		Spares kit for 3278 Varifuel, 3288 Multifuel	£14.00

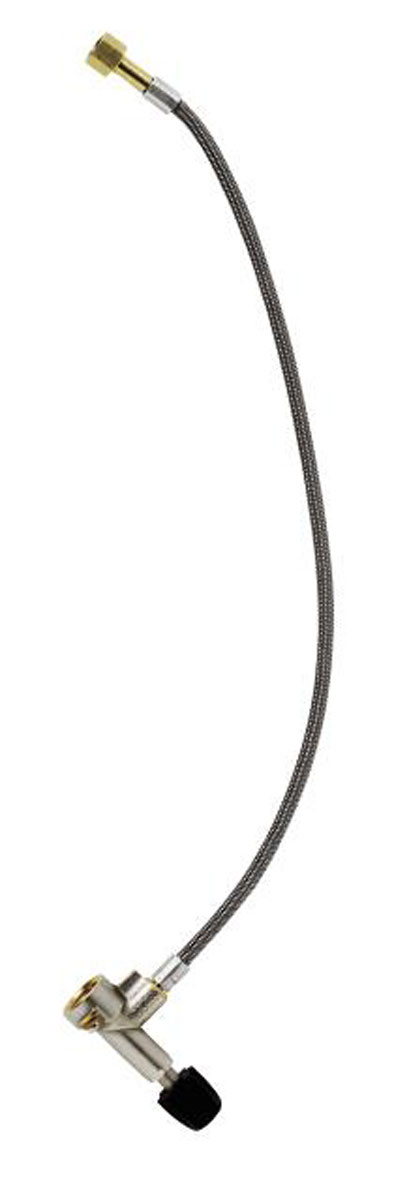

721360		Hose with valve for 3288 Multifuel fits pump 721260 & Ergopump 732230	£20.00
721450		Priming pad, pair, for 3278 Varifuel, 3288 Multifuel	£ 3.25
721460		Fuel pump service kit all pumps post 1999	£12.00
721550		Fuel pump for old 3278-83 Varifuel	£39.00
721720		Windshield/heat deflector for all stoves	£10.00
721860		Hose for 3278 Varifuel not Ergopump	£12.00
721990		Suction pipe and filter for fuelpump 721260, 721550, 732230 not Ergopump	£ 2.25
730610		Fuel hose cleaning wire for Varifuel 3278, Multifuel 3288	£ 3.00
730620		Brass nut for Easyfuel 3277, Varifuel 323278, Multifuel 3288	£ 2.30
730630		Metal washer for Easyfuel 3277, Varifuel 323278, Multifuel 3288	£ 1.25
730640	64881	Burner gasket Easyfuel 3277, Varifuel 323278, Multifuel 3288	£ 1.25
730650		'O' ring, hose to pump connection, Old Varifuel 3278	£ 2.50
730660	64895	Jet 3.5 , lpg/gasoline for 3278 Varifuel, 3288 Multifuel	£ 2.80
730670	64896	Jet 2.8 , kerosene for 3278 Varifuel, 3288 Multifuel, 3289 Omnifuel	£ 2.80
730680	47025	Flame spreader for 3278 Varifuel, 3288 Multifuel	£ 3.00
730690	50015	Pump leather for pump 721260,721550, 732230, 732240	£ 3.00
730700	50018	Gasket for fuel pump 721550, 721260, not Ergopump	£ 3.50
730710	50014	Silicone grease for pump leathers	£ 4.50
730730		Brass mushroon for non-return valve for fuel pump model -99	£ 3.00
730740		'O' ring for non-return valve for fuel pump model -99,	£ 2.80
730750		Spring for non-return valve for fuel pump model -99	£ 2.80
730760		Top for non-return valve for fuel pump model -99	£ 2.80
730770	47051	Old Multitool for Himalaya range	£7.50
731660		Non- return valve for pump, pre 1999	£11.00
731670		Neoprene carry bag for all stoves	£ 9.00
731770		Service kit for 3289 Omnifuel	£14.00
731780		Priming pad for 3289 Omnifuel, pair	£ 3.25
731790		Jet 4.5, Lpg for 3289 Omnifuel	£ 2.80
731800		Jet 3.7, Gasoline for 3289 Omnifuel	£ 2.80
731860		Multi tool for 3278 Varifuel, 3288 Multifuel, 3289 Omnifuel	£7.50
731870		Flame spreader for 3289 Omnifuel	£ 2.80
731880		Holder for priming pad, 3289 Omnifuel	£0.70
731890		Filter for 3289 Omnifuel	£ 0.70

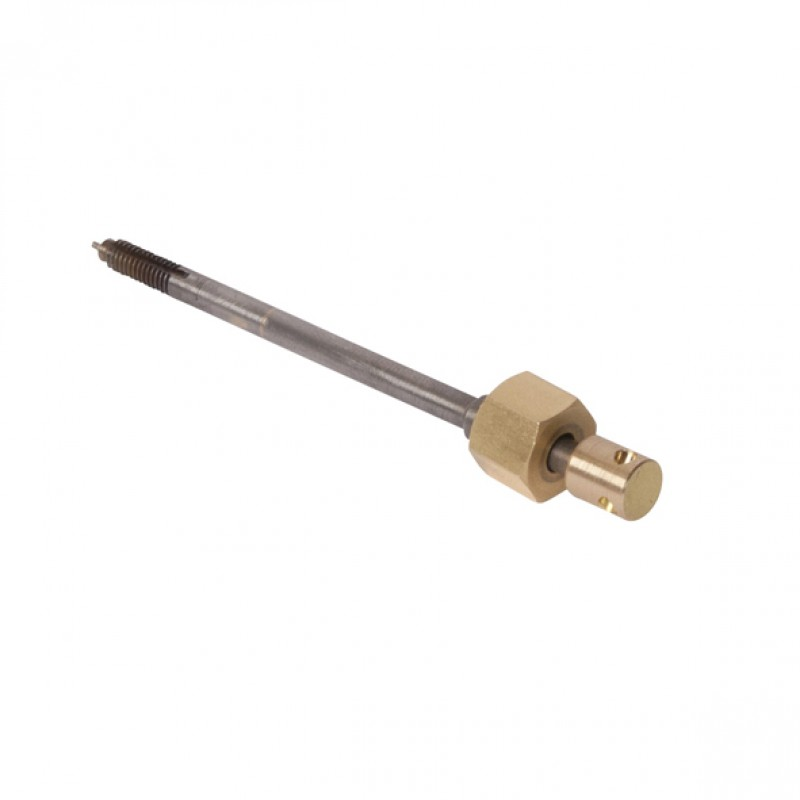

731900		Spindle & 'O' ring for 3289 Omnifuel	£10.00
731905		'O' ring for spindle 3289 Omnifuel,	£ 2.00
731910	50013	Replacement cleaning needle for Multitool 731860	£ 1.00
731920		Handle for spindle, 3289 Omnifuel	£ 2.00
731930		Hose for new Ergopump, 3289 Omnifuel	£23.00
731940		Brass screw for 3289 Omnifuel	£ 3.00
732230		Ergopump for 3288-04 Multifuel, 3289-04 Omnifuel, Gravity 3281-84MF	£42.00
732240		Ergopump for Varifuel, Gravity 3280-84MF & 3280-84VF	£42.00
732440		'0' rings, pair, for old and new control taps	£ 3.00
732470		Gasket for Ergopump	£ 4.00
732480		Plastic bush all fuel pumps	£ 2.80
732490		Fuel hose for Ergopump 732240, 3278-83 Varifuel	£12.50
732820		Jet .40 , white gas/gasoline for Gravity3281-84MF, 3280-84MF(2005), 3280-84VF	£ 2.80
732830		Jet .35 , Kerosene for Gravity3281-84MF, 3280-84MF(2005), 3280-84VF	£ 2.80
732840		Generator tube for Gravity3281-84MF, 3280-84MF(2005), 3280-84VF, 3279-83EF	£10.50
732850		Fuel hose cleaning wire for Gravity3281-84MF, 3280-84MF(2005), 3280-84VF	£ 3.25
732870		Spares kit for Gravity3281-84MF, 3280-84MF(2005), 3280-84VF	£14.50
732880		Jet .45 , LP gas, for Gravity 3281-84MF, 3279-83EF	£ 2.80
732900		Piezo ignition, Gravity 3279-83EF	£14.00
732910		Hose for Ergopump, Gravity 3281-84MF,3279-83EF	£16.00
732920		Hose for Ergopump, Gravity 3280-84VF, 3280-84MF (2005)	£20.00
732930		'O' ring, hose to Ergopump connection, Varifuel 3278, Gravity 3280-84MF(2005), 3280-84VF	£ 3.00
732940		Multitool for Gravity	£ 7.00
888506		'O' ring for gas tap, 2004+ new valve	£ 0.80
888006	902349	'O' ring for gas tap, pre 2004 old valve	£ 0.80
		Parts for Gravity 3280-84VF (2006) & 3280-84MF (2005)
730690	50015	Pump leather for all pumps	£ 3.00
730730		Brass mushroom for non-return valve for fuel pump	£ 2.80
730740		'O' ring for non-return valve for fuel pump	£ 2.80
730750		Spring for non-return valve for fuel pump	£ 2.80
730760		Top for non-return valve for fuel pump	£ 2.80
732240		Ergopump	£42.00
732470		Gasket for Ergopump	£ 4.00
732480		Plastic bush all fuel pumps	£ 2.80
732820		Jet .40 , white gas/gasoline	£ 2.80
732830		Jet .35 , Kerosene	£ 2.80
732840		Generator tube	£10.50
732850		Fuel hose cleaning wire	£ 3.25
732870		Spares kit	£14.50
732920		Hose for Ergopump	£20.00
732930		'O' ring, hose to Ergopump connection	£ 3.00
732940		Multitool	£ 7.00
		Parts for Gravity 3281-84MF (2006)
730690	50015	Pump leather for all pumps	£ 3.00
730730		Brass mushroon for non-return valve for fuel pump	£ 2.80
730740		'O' ring for non-return valve for fuel pump	£ 2.80
730750		Spring for non-return valve for fuel pump	£ 2.80
730760		Top for non-return valve for fuel pump	£ 2.80
732230		Ergopump	£42.00
732440		Use 888506
732470		Gasket for Ergopump	£ 4.00
732480		Plastic bush all fuel pumps	£ 2.80
732820		Jet .40 , white gas/gasoline	£ 2.80
732830		Jet .35 , Kerosene	£ 2.80
732840		Generator tube	£10.50
732870		Spares kit	£14.50
732880		Jet .45, LP gas,	£ 2.80
732910		Hose & tap for Ergopump	£16.00
732940		Multitool	£ 7.00
888506		'O' ring for control tap	£ .80
		Parts for Himalaya Multifuel 3288-83 & -04
		Not sure...? exploded view of Primus Multifuel here
721290		Spares kit	£14.00
721460		Fuel pump service kit	£12.00
721360		Hose with valve, fits pump 721260 & Ergopump 732230	£20.00
721450		Priming pad, pr.	£ 3.25
721990		Suction pipe and filter for fuelpump 721260, 732240 not Ergopump	£ 2.25
730610		Fuel hose cleaning wire	£ 3.00
730620		Brass nut	£ 2.30
730630		Metal washer	£1.25
730640	64881	Burner gasket	£ 1.25
730660	64895	Jet 3.5 , lpg/gasoline	£ 2.80
730670	64896	Jet 2.8 , kerosene	£ 2.80
730680	47025	Flame spreader	£ 3.00
730690	50015	Pump leather for pump	£ 3.00
730700	50018	Gasket for old fuel pump	£ 3.50
730710	50014	Silicone grease for pump leathers	£ 4.50
730730		Brass mushroon for non-return valve for fuel pump model -99	£ 2.80
730740		'O' ring for non-return valve for fuel pump model -99	£ 2.80
730750		Spring for non-return valve for fuel pump model -99	£ 2.80
730760		Top for non-return valve for fuel pump model -99	£ 2.80
730770	47051	Old Multitool	£7.50
731660		Non- return valve for pump, pre 1999	£11.00
731670		Neoprene carry bag, all stoves	£ 9.00
731860		New Multi tool	£7.50
731910	50013	Replacement cleaning needle for Multitool 731860	£ 1.00
732230		New Ergopump	£42.00
732470		Gasket for Ergopump	£ 4.00
732480		Plastic bush all fuel pumps	£ 2.80
888506		'O' ring for gas tap, 2004+ new valve	£ 0.80
888006	902349	'O' ring for gas tap, pre 2004 old valve	£ 0.80
		Parts for Himalaya Varifuel 3278-83
721290		Spares kit	£14.00
721460		Fuel pump service kit	£12.00
721550		Fuel pump for 3278-83 old varifuel	£39.00
721860		Hose for pump 721550, not Ergopump	£12.00
721450		Priming pad, pr.	£ 3.25
721990		Suction pipe and filter for fuelpump 721550, not Ergopump	£ 2.25
730610		Fuel hose cleaning wire	£ 3.00
730620		Brass nut	£ 2.30
730630		Metal washer	£ 1.25
730640	64881	Burner gasket	£ 1.25
730650		'O' ring, hose to pump connection, 278-83 old Varifuel	£ 2.50
730660	64895	Jet 3.5 , lpg/gasoline	£ 2.80
730670	64896	Jet 2.8 , kerosene	£ 2.80
730680	47025	Flame spreader	£ 3.00
730690	50015	Pump leather for pump	£ 3.00
730700	50018	Gasket for fuel pump 721550 & 721260, not Ergopump	£ 3.50
730710	50014	Silicone grease for pump leathers	£ 4.50
730730		Brass mushroon for non-return valve for fuel pump model -99	£ 2.80
730740		'O' ring for non-return valve for fuel pump model -99	£ 2.80
730750		Spring for non-return valve for fuel pump model -99,	£ 2.80
730760		Top for non-return valve for fuel pump model -99	£ 2.80
730770	47051	Old Multitool	£ 7.50
731660		Non- return valve for pump, pre 1999	£11.00
732240		Ergopump	£42.00
732470		Gasket for Ergopump	£ 4.00
732480		Plastic bush all fuel pumps	£ 2.80
732490		Fuel hose for Ergopump 732240	£12.50
732930		'O' ring, hose to Ergopump connection	£ 3.00
		Parts for Himalaya Omnifuel 3289-84 & -04
		Not sure...? exploded view of Primus Omnifuel here
721360		Hose with valve for pump pre 2004	£20.00
721990		Suction pipe and filter for fuelpump 721260	£ 2.25

730670	64896	Jet 2.8 , kerosene	£ 2.80
730690	50015	Pump leather for pump 721260 & Ergopump 732230	£ 3.00
730700	50018	Gasket for fuel pump 721260, not Ergopump	£ 3.50
730710	50014	Silicone grease for pump leathers		£ 2.80
730740		'O' ring for non-return valve for fuel pump	£ 2.80
730750		Spring for non-return valve for fuel pump	£ 2.80
730760		Top for non-return valve for fuel pump	£ 2.80
731770		Service kit	£14.00
731780		Priming pad	£ 3.25
731790		Jet 4.5, Lpg	£ 2.80
731800		Jet 3.7, Gasoline	£ 2.80
731860		New Multi tool	£ 7.50
731870		Flame spreader	£ 2.80
731880		Holder for priming pad	£ .70
731890		Filter	£ .70
731900		Spindle & 'O' ring	£10.00
731905		'O' ring for spindle 3289 Omnifuel,	£ 2.00
731910		Replacement cleaning needle for Multitool 731860	£ 1.00
731920		Handle for spindle,	£ 2.00
731930		Hose for new Ergopump	£23.00
731940		Brass screw	£ 3.00
732230		New Ergopump for 3288 Multifuel & 3289 Omnifuel	£42.00

732470		Gasket for Ergopump	£ 4.00
732480		Plastic bush all fuel pumps	£ 2.80
888506		'O' ring for gas tap, 2004+ new valve	£ 0.80
888006	902349	'O' ring for gas tap, pre 2004 old valve	£ 0.80

Primus AB. & Primus Leisure LPG Stoves & Lanterns.
We do not major in Primus AB. gas stoves and lanterns but we do carry some parts. The Primus Leisure Division was part of Primus Sievert, most parts for the gas stoves and lanterns are obsolete but we do carry some consumable parts listed below
No.2	3773 'Hard' mantle fits Primus 2220 LPG lantern	£ 4.00
730800	100cp LPG mantles, fits Primus 2172/79, 2240/45/48/50, 2269/79, 3230/35/40/50 pack of three	£ 5.95
715502	LPG mantles, fits Primus 2163 & 2257 pack of three	£ 5.10
800801	LPG mantles, fits Primus 2150/2170/2171 & 2176, each.	£ 1.50
800901	LPG mantles, fits Primus 2151/2152/2159 & 2163 pack of three	£ 5.95
845506	Glass chimney for Primus 2150/2170/2171/ 2172/2179/2184/2250/2269/2270/2271/2279/ 2284/2286/2289/3250/3284	£ 5.95
720182	Glass chimney forPrimus LPG 3240 Moonlight	£ 5.50
721490	Glass chimney for Primus LPG Primus 2220, 2240 Treklight, 2245 Easylight, 3220, 3230 Treklite	£ 5.50
731590	Piezo ignitor, 3277-83/84 Easyfuel	£10.50
731810	Piezo ignitor, Technotrail 3270-83	£10.00
733340	Piezo ignitor, Technotrail II 3270-93	£12.50
731840	Nipple 0.37mm, fits Primus Classic Trail 2243, Litetrail 3266, Technotrail 3270	£ 2.80
732060	Nipple 0.30mm, fits Primus 2213 Micron, 3213 Micro	£ 2.80
732000	Nipple 0.40mm, fits Primus 3277 Easyfuel	£ 2.80
732070	Nipple 0.12mm, fits Primus 2245 Easylight & 3020 Treklite	£ 2.80
732100	Nipple 0.14mm, fits Primus 3240 Moonlight	£ 2.80
732880	Nipple 0.45mm, fits Primus 3279-83 Gravity	£ 2.80
732450	Mesh chimney for Micron lantern	£11.00
830606	'O' ring for Primus Seivert lamps & stoves, connection to 2000 & 2012 refillable cylinder	£ 2.00
830306	Nitrile seal for Primus Seivert lamps & stoves, connection to 2000 & 2012 refillable cylinder	£ 2.00
888006	'O' ring for Primus gas tap to cartridge, pre 2005 most products	£ 0.80
888506	'O' ring for Primus gas tap to cartridge, 2005 most products	£ 0.80

3278-83	Himalaya Varifuel Stove, while stocks last..!	£64.95
3280-85	Primus Gravity Varifuel Stove + 1/2 ltr fuel bottle, new low profile stove for White gasoline & paraffin,	£79.95
3281-85	Primus Gravity Multifuel Stove + 1/2 ltr fuel bottle, low profile stove for LPgas, White gasoline & paraffin,	£94.95
3289-85	Primus Omnifuel Stove + 1/2 lt fuel bottle & Ergopump	£118.95
721950	Primus 1/2lt fuel bottle	£ 9.00
721960	Primus 1lt fuel bottle	£10.00

Convert your order from £ Sterling here:- Currency converter
Primus Stoves.
