Optimus 123R "Climber" Stove

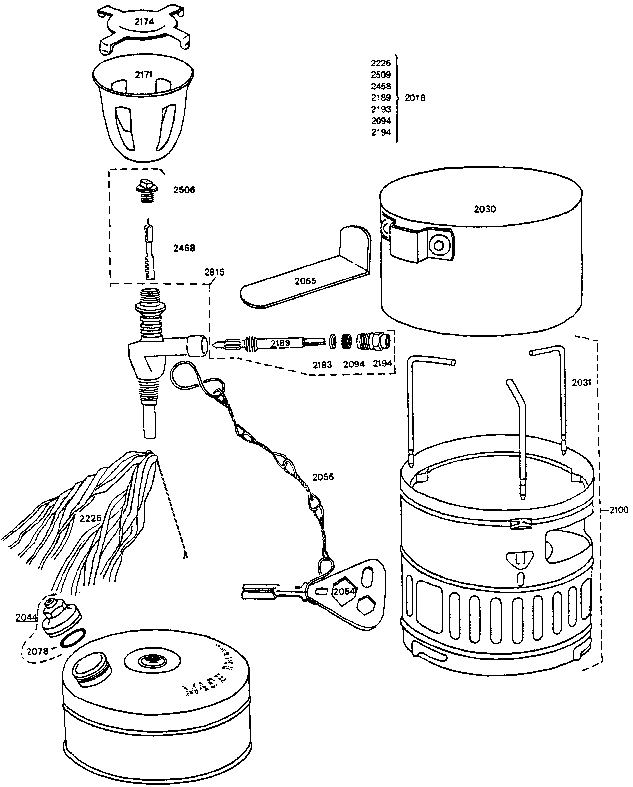

Exploded view.



2018 Vaporiser
2030 Saucepan
2031 Pan support, each
2044 Tank lid with packing & safety valve
2056 Key chain
2064 Regulating key
2065 Pan Handle
2078 Lid packing
2094 Graphite packing
2100 Windshield
2171 Burner head
2174 Burner plate
2189 Valve spindle
2193 Metal ring
2194 Stuffing box
2226 Wick
2458 Cleaning needle
2509 Nipple
